Custom Precision CNC Plate Machining | Non-Standard Components

Custom CNC plate machining, precision plate components, custom base plate machining, non-standard plate manufacturing, CNC aluminum plates, custom cold plate machining, tight tolerance plate milling

Category:

Precision Custom CNC Machining Services for Industrial Plate Components

“Plates” serve as essential foundations in modern industrial machinery and automated systems, fulfilling key roles in structural support, precise alignment, thermal management, and sealing. We specialize in high-precision, custom CNC machining of non-standard plate components, providing end-to-end manufacturing solutions from rapid prototyping to full-scale production.

Comprehensive Types of Custom Plate Components

  • Structural & Support: Base Plate, Mounting Plate, Fixing Plate, Adapter Plate, Support Plate.

  • Transmission & Positioning: Guide Plate, Retainer Plate, Index Plate, Connecting Plate, Locating Plate.

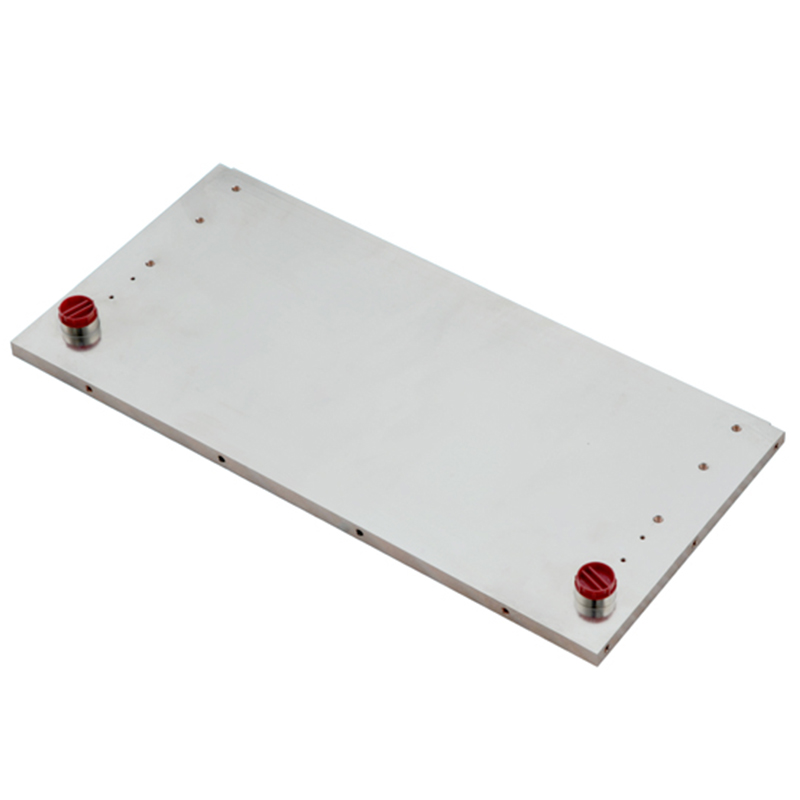

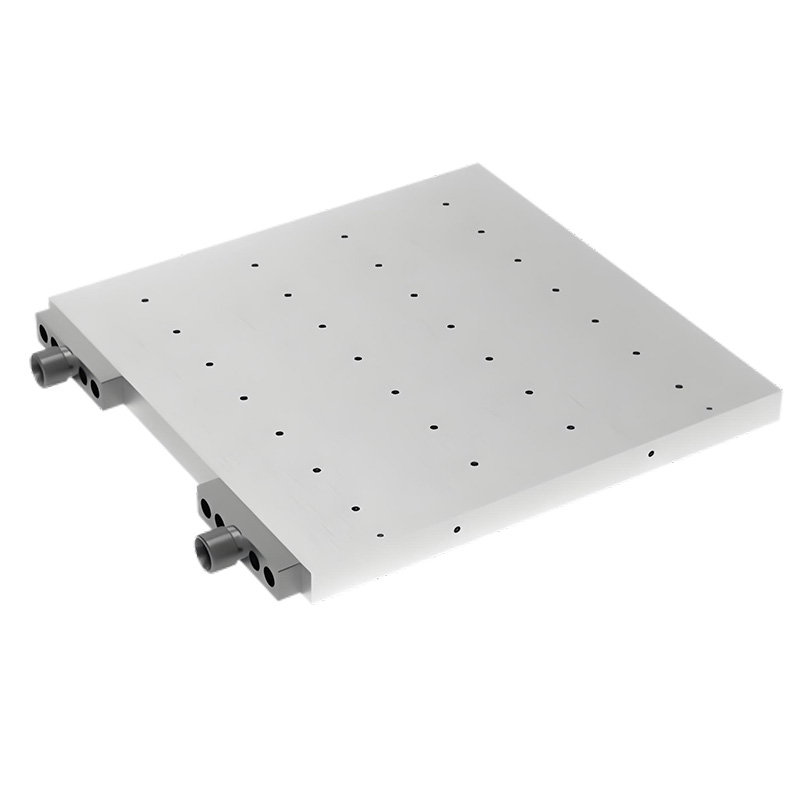

  • Thermal Management & Sealing: Water-Cooled Cold Plate, Heat Sink Plate, Seal Plate, Cover Plate, End Plate.

  • Wear & Protection: Wear Plate, Backing Plate, Shield Plate, Stripper Plate.

  • Tooling & Fixtures: Fixture Plate, Inspection/Testing Plate, Vacuum Chuck Plate, Jig Plate.

Material Capabilities

Material Category Common Grades Typical Applications & Features
Aluminum Alloys AL6061-T6, AL7075-T6, AL5052, AL2024 Lightweight, high strength-to-weight ratio, excellent anodizing properties for robotics and aerospace.
Stainless Steel SUS304, SUS316L, 17-4PH, SUS420 Superior corrosion resistance and high strength for medical, semiconductor, and food machinery.
Carbon & Tool Steels C45 / 1045, 4140, SKD11, SKD61, DC53 High hardness and wear resistance, ideal for wear plates, die sets, and heavy-duty structural supports.
Copper & Brass Alloys C3604 Brass, C1100 Pure Copper, C17200 Beryllium Copper Outstanding thermal and electrical conductivity for liquid cooling plates, bus bars, and electrical contact plates.

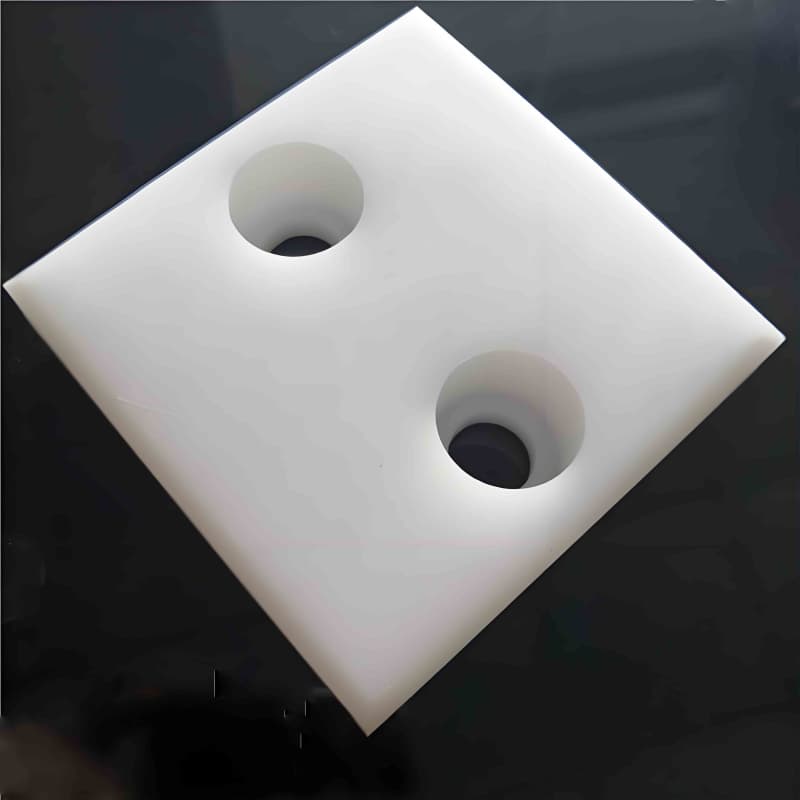

Engineering Plastics PEEK, POM (Delrin), PTFE, PMMA, PP, ABS, PEI Excellent electrical insulation, chemical resistance, and low friction for semiconductor jigs and medical fixtures.
Exotic Alloys Titanium (Gr2, TC4/Gr5), Inconel Extreme heat and corrosion resistance for aerospace, marine, and specialized chemical processing.

Full-Process Manufacturing & Surface Finishing

  • Precision Machining: 3/4/5-Axis CNC Milling, CNC Turning, High-Speed Milling.

  • Flatness & Geometric Control: Precision Surface Grinding and Double-Disc Grinding achieving tight flatness and parallelism tolerances down to ±0.005 mm.

  • Specialized Processing: Wire EDM, Laser Cutting, Deep-Hole Gun Drilling for internal liquid cooling channels.

  • Surface Finishing Options: Hardcoat/Standard Anodizing, Electroless Nickel Plating, Passivation, Sandblasting, Powder Coating, DLC, and Teflon Coatings.

Industries Served

  • Humanoid Robotics & Automation: Joint link plates, actuator mounting plates, wrist adapter plates, and chassis baseboards.

  • Semiconductor & Electronics: Wafer transfer plates, vacuum chuck plates, chamber top plates, and PCB test fixture plates.

  • New Energy & EV Automotive: Battery liquid cold plates, module end plates, and stamping die wear plates.

  • Medical & Biotech: Instrument carrier plates, surgical positioning plates, and chemical-resistant cover plates.

  • Optics & Aerospace: Optical breadboard plates, precision stage mounting plates, and lightweight structural panels.

Whether managing thin-plate deformation control, intricate internal liquid channels, or strict flatness tolerances, our complete DFM review, stress-relief heat treatments, and CMM inspection guarantee exact compliance with your technical drawings. Send your STEP, IGES, or PDF files today for an instant quote!
