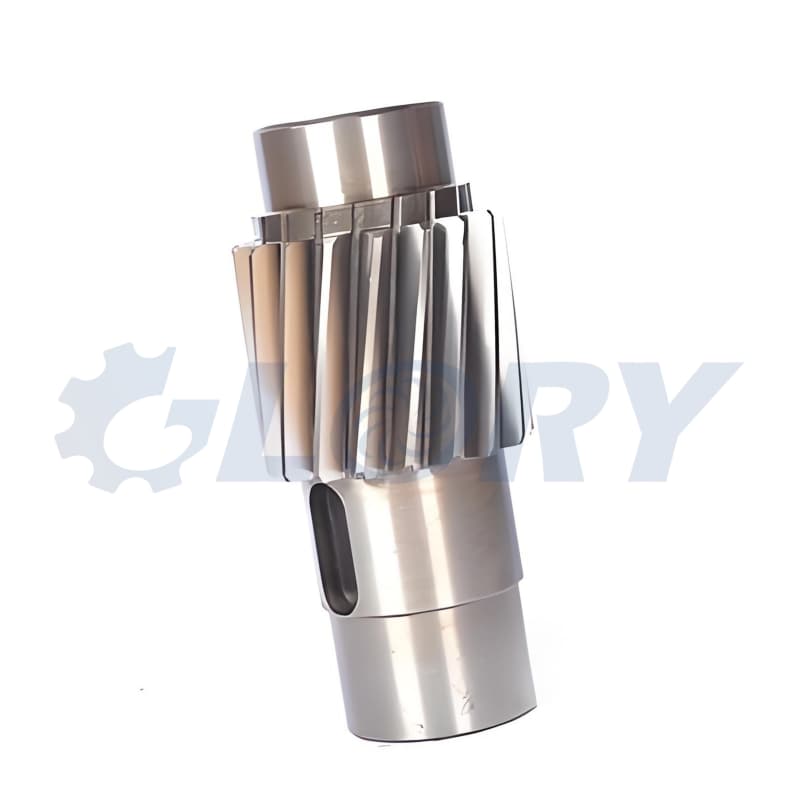

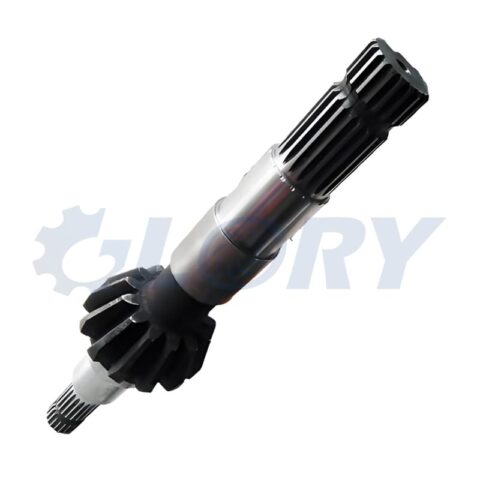

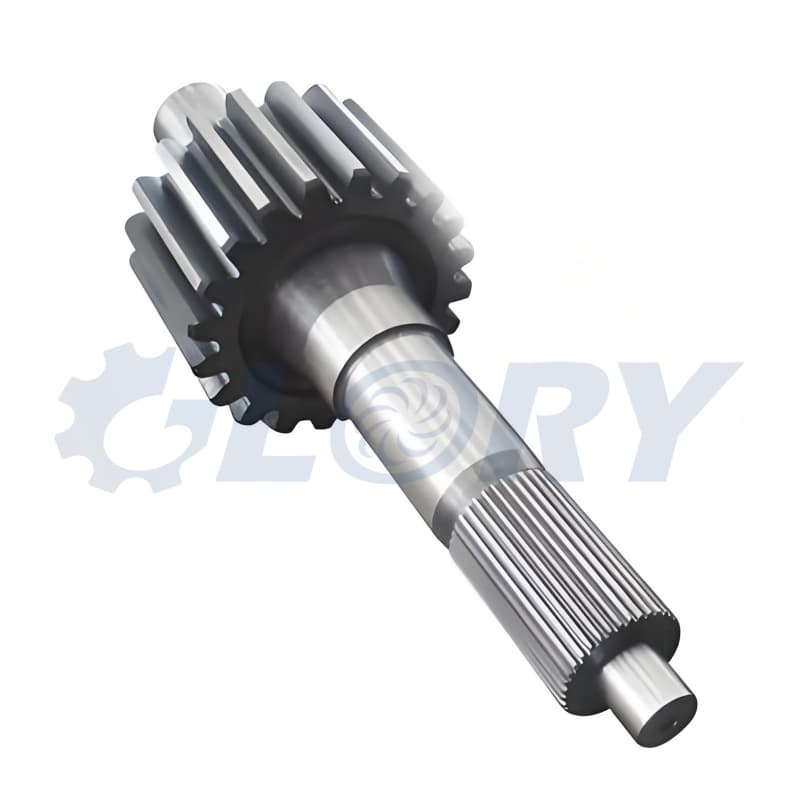

Custom Gear Shaft Machining | Precision Machined Gear Shafts

Custom gear shaft machining, precision gear shafts, custom gear shaft supplier, CNC shaft turning, gear grinding services

Category:

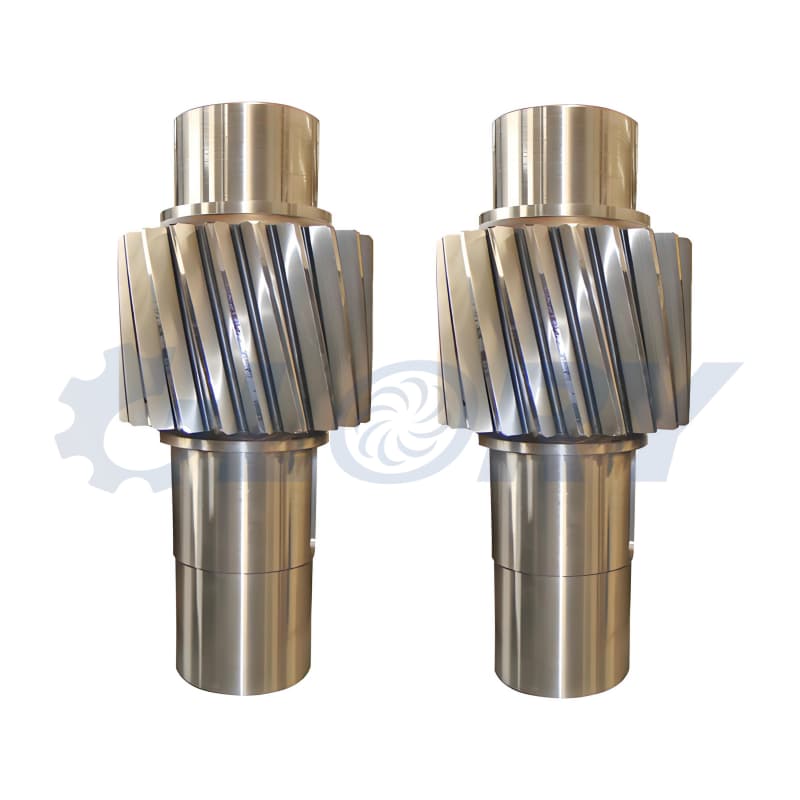

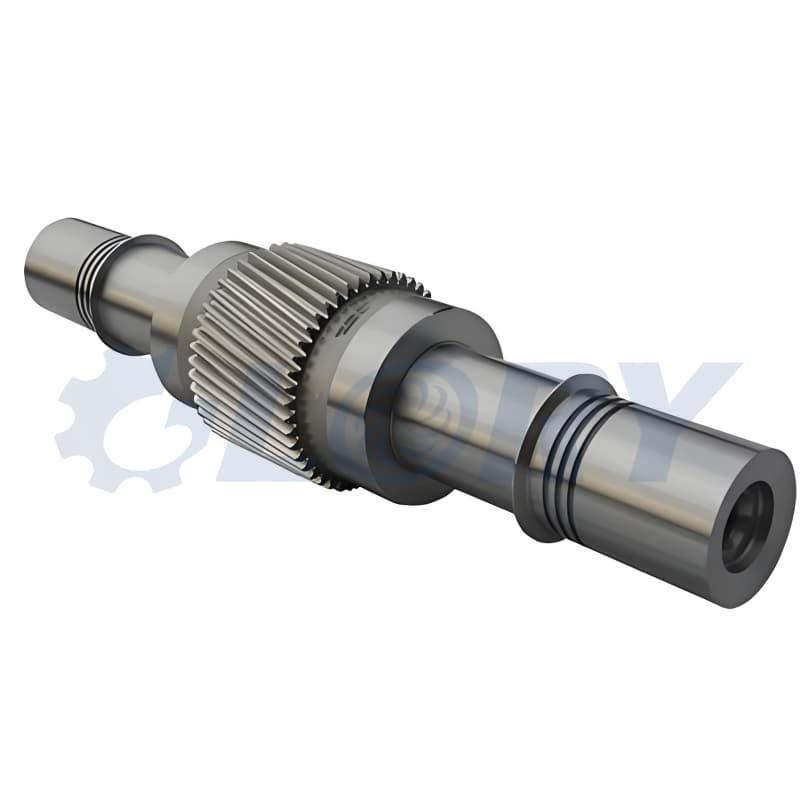

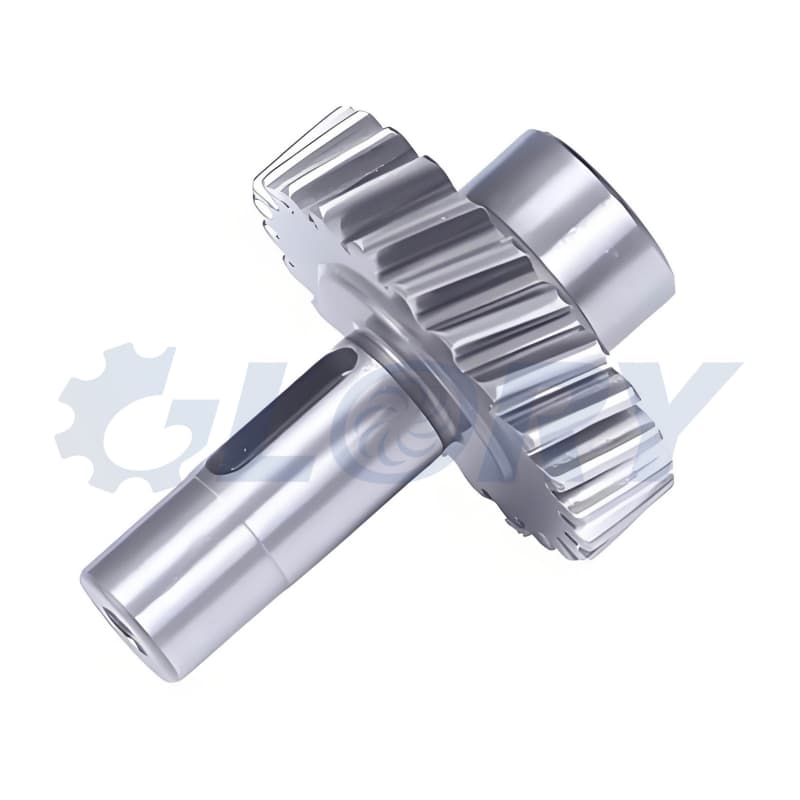

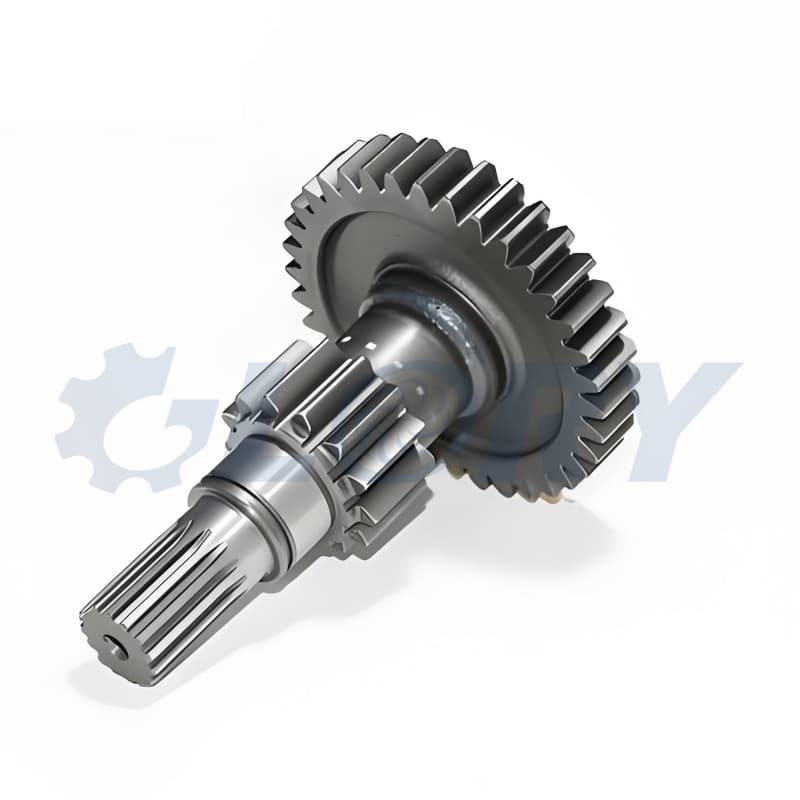

High-Precision Custom Gear Shaft Machining Solutions
In mechanical transmission and drive systems, the gear shaft is a critical component that determines system lifespan, transmission efficiency, and operational noise. We specialize in custom high-precision gear shaft and transmission component machining. Delivering strict geometric tolerance control and end-to-end manufacturing capabilities, we offer equipment manufacturers nationwide a seamless, single-source solution from drawing evaluation to volume production.
Key Industries & Applications
We provide tailored material selection and machining processes to suit demanding drive requirements across diverse sectors:
  • Robotics & Automation:
    • Applications: Humanoid robot joint reducer input shafts, AGV drive wheel shafts, and robotic arm precision servo drive shafts.
    • Pain Points Solved: Meets lightweight, compact design and low-backlash requirements; precision-ground splines and fine-module gears ensure smooth, silent operation.
  • Reducers & Power Transmission:
    • Applications: Planetary gearbox sun shafts, industrial gearbox input/output shafts, and worm gear drive shafts.
    • Pain Points Solved: Superior gear-face wear resistance and fatigue strength under heavy shock loads; carburizing, quenching, and gear grinding eliminate thermal deformation.
  • Pumps, Valves & Fluid Machinery:
    • Applications: High-pressure gear pump drive shafts, screw pump transmission shafts, and chemical metering pump shafts.
    • Pain Points Solved: Strict control of journal sealing surface roughness (Ra < 0.4); stainless steel or duplex steel materials combine high torsional strength with corrosion resistance.
  • Construction & Agricultural Machinery:
    • Applications: Tractor/excavator travel reduction shafts, Power Take-Off (PTO) shafts, and heavy-duty steering gear shafts.
    • Pain Points Solved: Large-module gear hobbing/broaching combined with high-toughness quenching and tempering ensures zero breakage under extreme impact load.
  • Medical & Food Packaging Equipment:
    • Applications: Aseptic filling line transmission shafts and medical equipment indexing shafts.
    • Pain Points Solved: Custom machining using engineering plastics (PEEK/POM) or sanitary-grade stainless steel for lube-free or food-grade lubricated environments.
Material Capabilities & Performance Matching
  • Carburizing Steels & Alloy Steels (High Load & Wear Resistance):
    • Grades: 20CrMnTi, 20CrNiMo, AISI 4140, 4340, 8620
    • Characteristics: Case-hardened (HRC 58–62) while retaining a high-toughness core to absorb strong impact loads.
  • Quenched & Tempered Carbon/Alloy Steels (General Transmission):
    • Grades: AISI 1045 (45# Steel), 40Cr
    • Characteristics: Cost-effective with excellent machinability and well-balanced mechanical properties after Q&T treatment.
  • Corrosion-Resistant Stainless Steels (Harsh Environments):
    • Grades: 304, 316L, 17-4PH, 420
    • Characteristics: Precipitation-hardening stainless steel (e.g., 17-4PH) delivers both high mechanical strength and exceptional corrosion resistance.
  • Engineering Plastics (Low Noise & Lightweight):
    • Grades: POM (Acetal), Nylon (PA66/MC Nylon), PEEK
    • Characteristics: Self-lubricating, low-noise, and wear-resistant—ideal for light-load, high-precision operations.
Core Manufacturing Processes & Precision Control
Our in-house, end-to-end shaft and gear manufacturing capabilities eliminate subcontractor delays while securing lead times and product quality:
  • Precision CNC Turning & Mill-Turn Operations: Single-setup machining of multi-stepped shaft diameters, undercut grooves, center holes, and external threads to maintain concentricity and runout.
  • Gear & Spline Cutting:
    • Hobbing: High-efficiency cutting of spur gears, helical gears, and involute/straight splines.
    • Shaping: Handles stepped gears, internal shoulders, or narrow-clearance structures.
  • Grinding & Geometric Tolerance Control:
    • Cylindrical Grinding: Journal and bearing fit tolerances held within $\pm 0.005\,\text{mm}$.
    • Gear Grinding: Post-heat-treatment precision grinding achieving gear quality up to DIN 6, significantly reducing noise and boosting drive efficiency.
  • Heat Treatment & Surface Finishing: Complete post-processing services, including quenching & tempering, carburizing, nitriding, black oxide, nickel plating, and ultrasonic cleaning.
Service Commitments & Quality Assurance
  • Flexible Production Capacity: Full support for single-piece prototyping, low-volume trial runs, and medium-to-high volume production.
  • Quality Documentation: Every order can include CMM inspection reports, gear roll test data, full dimensional inspection reports, and Material Test Reports (MTR).
Whether you are developing a new machine or sourcing a reliable, high-quality custom gear shaft supplier, submit your 2D/3D prints (STEP, DWG, PDF) today for a technical assessment and quotation within 24 hours!
