High-Precision Custom CNC Machining & Specialized Flange Components

We offer custom CNC machining services for complex, high-precision mechanical components and a complete range of specialized flange components. From industrial fluid piping to semiconductor vacuum chambers, humanoid robot joint actuators, and subsea oil & gas systems, we provide end-to-end manufacturing solutions including DFM drawing evaluation, material sourcing, precision machining, surface finishing, and CMM inspection.

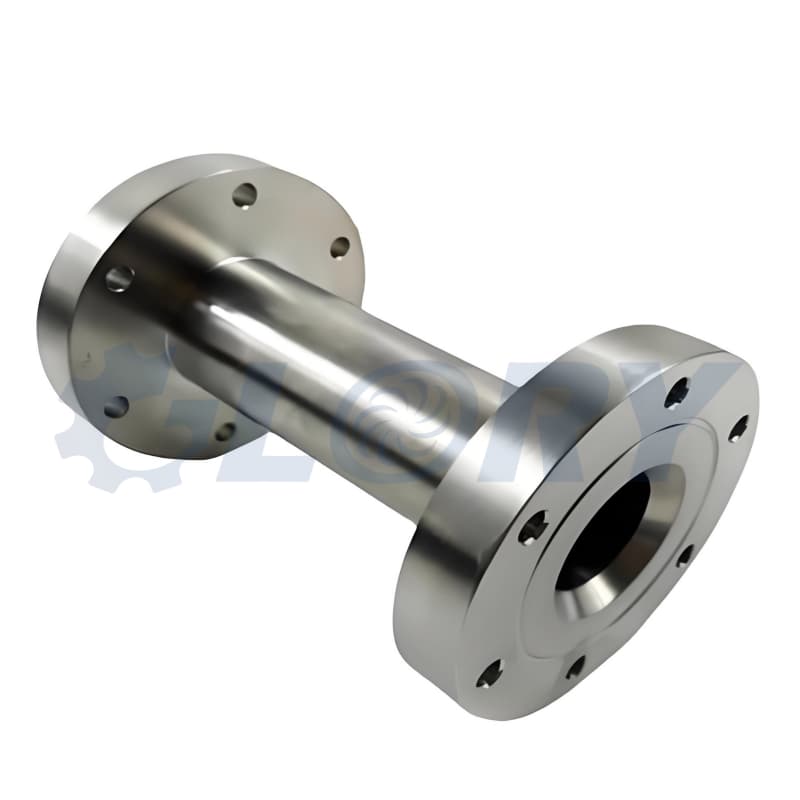

1. Custom Flange & Non-Standard Component Portfolio

Flange components perform essential mechanical functions including sealing, structural mounting, torque transmission, fluid distribution, and precision alignment. We support custom fabrication from 2D/3D CAD files (STEP, IGES, DWG, PDF) for single-piece prototyping through high-volume production runs:

2. Comprehensive Material Capabilities

We machine a wide variety of engineering materials ranging from easy-machining metals and lightweight alloys to heat-resistant superalloys and technical plastics:

• Stainless Steel: SUS304, SUS304L, SUS316, SUS316L, 316Ti, SUS321, 17-4PH (SUS630), 15-5PH, 904L, Duplex 2205, Super Duplex 2507. Excellent corrosion and heat resistance for semiconductors, fluid systems, food, and medical devices.

• Aluminum Alloys: AL6061-T6, AL7075-T6, AL5083, AL2024, MIC6 (Cast Aluminum Plate), AL6082, AL7050. High strength-to-weight ratio for robotics, aerospace, and electronics enclosures.

• Carbon & Alloy Steels: Q235B, Q355B, 1045 (45# Steel), 40Cr, 42CrMo4 (SAE 4140), 20CrMnTi, SAE 8620, ASTM A105, A350 LF2, 35CrMo. High strength and wear resistance for heavy machinery, automotive transmissions, and high-pressure flanges.

• Copper & Brass Alloys: C36000 Brass, C11000 Pure Copper, C17200 Beryllium Copper, C54400 Phosphor Bronze, C63000 Aluminum Bronze. Superior electrical/thermal conductivity and self-lubricating properties for electrodes, bushings, and water-cooled flanges.

• Superalloys & Exotic Metals: Inconel 625, Inconel 718, Hastelloy C-276, Monel 400, Titanium Grade 2 / Grade 5 (Ti-6Al-4V), Tantalum, Niobium. Resistant to severe acids, alkalis, and extreme temperatures in subsea oil & gas and aerospace applications.

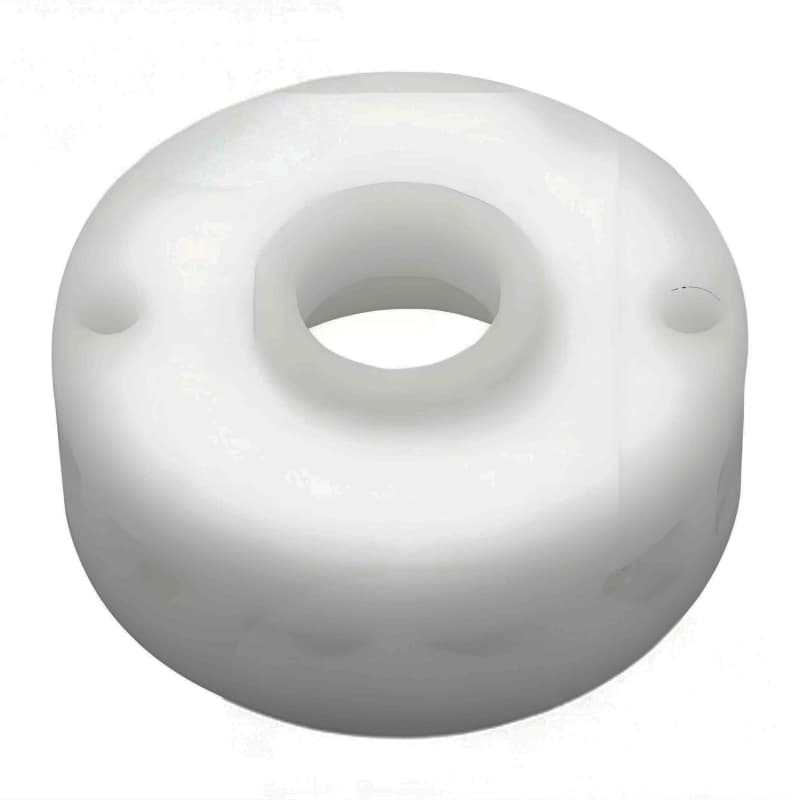

• Engineering Plastics: PEEK, POM (Delrin), PTFE (Teflon), PMMA (Acrylic), PP, PEI (Ultem 1000), PVDF, Nylon 66 / MC Nylon, ABS, PC. Non-conductive, lightweight, and chemical-resistant for insulating flanges and semiconductor/medical components.

3. Precision Manufacturing Processes & Surface Finishing

• CNC Turning & Swiss Machining: Ideal for rotational flanges, flange shafts, and miniature fluid fittings. Supports micro-R angle control at thread roots and crests to prevent burrs and guarantee high-pressure seal integrity.

• 3 / 4 / 5-Axis CNC Milling: Enables single-setup machining of complex multi-axis geometries, angled bolt holes, internal channels, and 3D curved surfaces with position and concentricity tolerances down to ±0.005 mm.

• EDM & Precision Grinding: Wire EDM and Sinker EDM for hardened steels (HRC 60+) and narrow slots; surface/cylindrical grinding achieving sealing face roughness of Ra 0.2 µm – Ra 0.4 µm.

• Surface & Post-Treatment: Anodizing (standard, hardcoat, color), electropolishing (EP for semiconductor-grade cleanliness), chemical nickel plating, hard chrome, passivation, black oxide, sandblasting, and Teflon coating.

• Heat Treatment: Quenching & tempering, carburizing, nitriding, vacuum hardening, stress relieving, and solution annealing to optimize mechanical properties and eliminate residual stress.

4. Industries Served

• Oil & Gas & Chemical Engineering: High-pressure Christmas tree valve flanges, subsea manifold components, Hastelloy/Duplex acid-resistant fluid interfaces.

• Semiconductor & Vacuum Equipment: Ultra-high vacuum CF/KF flanges, chamber sealing rings, wafer-handling robot arms, electropolished high-purity fittings.

• Robotics & Smart Automation: Humanoid joint actuator flanges, dexterous hand mounting plates, harmonic reducer end covers, lightweight aluminum components.

• Aerospace & Defense: Titanium high-temperature pipe flanges, hydraulic system fittings, lightweight high-strength enclosures.

• Medical & Life Sciences: Fluid manifold flanges for analytical instruments, CT/MRI positioning adapters, PEEK/PTFE corrosion-resistant parts.

• Automotive & EV Powertrains: Battery cooling plate flanges, hydrogen fuel cell bipolar plate interfaces, motor drive flanges.

• Renewable Energy (Wind, Solar, Nuclear): Wind turbine pitch reducer flanges, solar tracker flange shafts, nuclear-grade sealed pipe fittings.

• Food & Pharmaceutical Processing: 316L sanitary tri-clamp flanges, sanitary pump/valve bodies, electropolished fluid connectors.

5. Quality Assurance & Service Workflow

• Precision Standard: Tight dimensional tolerances up to ±0.005 mm with geometric tolerances (concentricity, perpendicularity, runout) controlled within 0.005 mm.

• Inspection Equipment: Fully equipped with CMM (Hexagon), optical comparators, surface roughness testers, thread scanners, and optical emission spectrometers. Full inspection reports and Material Test Certificates (MTC) provided with every shipment.

• Flexible Production: Supports 1-piece prototyping to volume production with rapid 24-hour DFM engineering feedback and quotation.
