Custom CNC machining parts for humanoid robots from R&D prototypes to mass production

Category: CNC machining metal

Embodied AI and humanoid robotics are rapidly transitioning from laboratory concepts to commercially scalable products. This inflection point imposes unprecedented demands on the physical mechanical structures and transmission systems of robots: ultra‑high power‑to‑weight ratios, micron‑level motion accuracy, extreme lightweight construction, and long‑term fatigue resistance under cyclic loading. Standard off‑the‑shelf components can no longer satisfy the performance targets of next‑generation humanoids. Only through deeply customized, high‑precision machining can innovative designs be transformed into reliable, efficient, and mass‑producible hardware.

We specialize in high‑end non‑standard precision machining for the robotics industry. Our core processes include ultra‑precision CNC turning, Swiss‑type automatic lathe work, and turn‑mill multitasking, complemented by 5‑axis simultaneous milling, internal/external cylindrical grinding, gear cutting, and heat treatment. Our service scope covers all critical subsystems: dexterous hands, linear/rotary actuators, high‑rigidity joint components, and lightweight biomimetic skeletons. Backed by years of accumulated process expertise, a fleet of advanced German/Japanese machine tools, and a full‑scale quality management system compliant with ISO 9001, AS9100D, and IATF 16949, we are committed to being the most trusted precision manufacturing partner for humanoid robot innovators worldwide.

1. Custom Non‑Standard Component Capabilities by Robot Subsystem

We provide integrated “material – process – inspection – assembly” custom machining services for four core subsystems of humanoid robots. Each part family is supported by dedicated engineering expertise:

Subsystem Module	Typical Custom Components	Key Specifications & Machining Challenges
Dexterous Hand	• Micro planetary gear shafts (module ≤ 0.3) • Tendon‑drive miniature pulleys (V‑groove / toothed) • Knuckle worm gears / worm wheel pairs • Coreless motor rotor shafts (Ø2–10 mm) • High‑precision locating pins / bushes	• Ultra‑small dimensions with outer diameter tolerances down to ±0.002 mm; • Materials often titanium (TC4/Grade 5) or precipitation‑hardening stainless steel (17‑4PH) with hardness up to HRC 45–52; mirror surface finish (Ra ≤ 0.1 μm) and absolute burr‑free required; • Swiss‑type sliding‑headstock machines complete turning, milling, drilling, and gear hobbing in one setup, ensuring positional accuracy ≤ 0.005 mm between all features.
Linear Actuator	• Planetary roller screw assemblies (screw shafts, nuts, rollers, sun gear shafts) • Planet carrier sleeves • Absolute encoder housings (thin‑wall stainless steel)	• Multi‑start thread lead accuracy must meet C3 grade (±0.005 mm / 300 mm) with strict cumulative pitch error control; • Parts undergo carburizing / nitriding (hardness ≥ HRC 58) followed by thread grinding and hard turning in combination to achieve near‑zero backlash; • Full helix profile measurement reports and contact‑probe meshing error analysis provided.
Rotary Actuator	• Harmonic drive flexspline blanks / circular splines (wall thickness 0.3–1.5 mm) • Frameless torque motor rotor sleeves (high‑permeability materials) • Cross‑roller bearing rings (with mounting holes) • Face gear discs (Hirth‑type couplings)	• Flexsplines are typical thin‑walled, distortion‑prone parts; dedicated stress‑relief fixtures and cryogenic air‑cooled cutting are mandatory, combined with multiple aging cycles to guarantee roundness / concentricity ≤ 0.003 mm; • 5‑axis simultaneous machining for complex contoured surfaces, with in‑process probing for thermal‑drift compensation; • Full gear tooth profile inspection reports from a gear measuring centre.

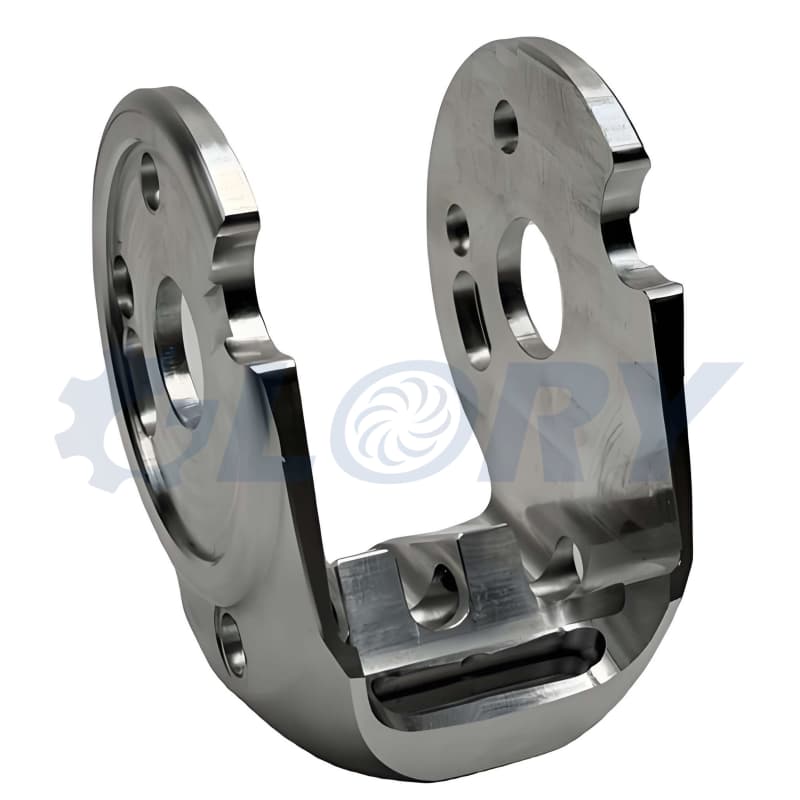

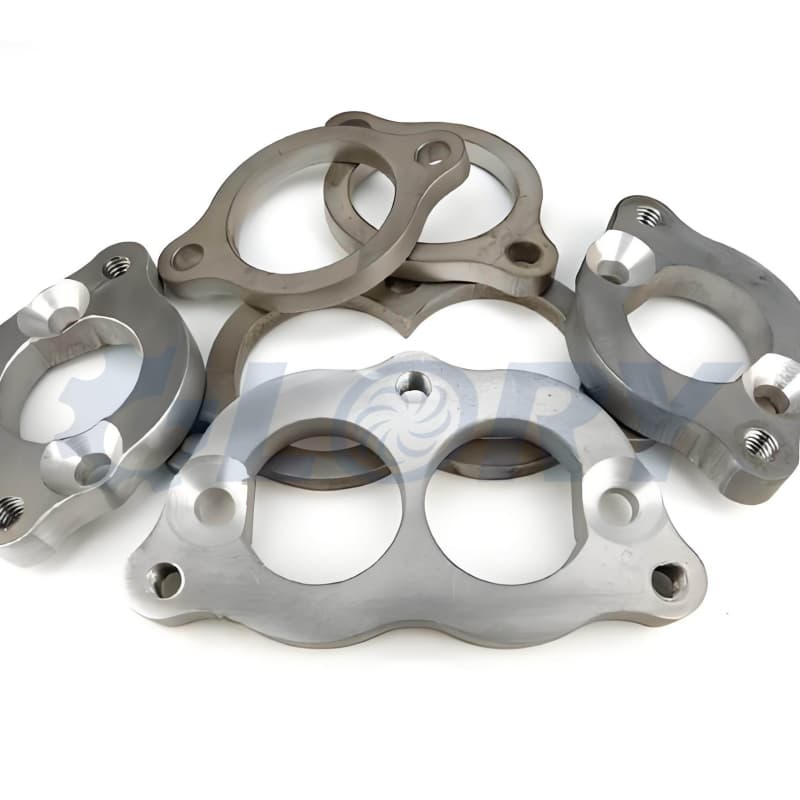

Structural Skeleton	• Hip / knee / shoulder joint clevises • Spine support frames (biomimetic curved designs) • High‑load base flanges • Topologically optimised integral lightweight structures	• Complex free‑form surfaces require 5‑axis simultaneous machining with optimised tool paths to ensure surface quality and productivity; • Lightweighting is critical—weight‑reduction pockets / honeycomb structures must preserve stiffness, often using aerospace‑grade 7075‑T6 aluminium or TC4 titanium; • On‑site FEA‑assisted process simulation to minimise residual stress and avoid chatter in thin‑web areas.

2. Common Material Systems & International Standard Equivalents (with Robotics Application Guidance)

Material selection directly determines power density and service life. We maintain a fully traceable supply chain covering all major global standards and provide Material Test Certificates (MTC), positive material identification (PMI) on‑site testing, and third‑party re‑inspection upon request.

Material Category	China (GB)	USA (ASTM/AISI)	Europe (DIN/EN)	Japan (JIS)	Typical Robotics Applications
Ultra‑High‑Strength Alloy Steels (deep‑hardenable + fatigue‑resistant)	18Ni250 (maraging) 20CrMnTi (carburising) 40CrNiMoA (quench‑temper)	Maraging 250 (C250) AISI 8620 (Cr‑Mo) AISI 4340 (Ni‑Cr‑Mo)	1.6359 (X2NiCoMo18‑9‑5) 1.7147 (20MnCr5) 1.6582 (34CrNiMo6)	VASCOMAX 250 SNCM220 (carburising) SNCM439 (high‑strength)	Planetary roller screws, reducer gears, heavy‑duty joint pins—require tensile strength ≥ 1500 MPa and excellent impact toughness.
Titanium Alloys (highest specific strength + corrosion resistance)	TC4 (Ti‑6Al‑4V) TA15 (Ti‑6.5Al‑2Zr‑1Mo‑1V)	Ti‑6Al‑4V (Grade 5) Ti‑6Al‑2Sn‑4Zr‑2Mo	3.7165 (TiAl6V4) 3.7115 (TiAl6Zr2Mo1V)	TAB6400 ―	Dexterous finger knuckles, lightweight high‑strength connectors, joint housings—achieve ~40% weight saving while maintaining stiffness comparable to steel, ideal for high‑dynamic applications.
Aerospace Aluminium Alloys (light + high‑strength + machinable)	7075‑T6/T651 6061‑T6/T651	Alloy 7075‑T6 (Al‑Zn‑Mg‑Cu) Alloy 6061‑T6 (Al‑Mg‑Si)	AlZnMgCu1.5 (3.3415) AlMg1SiCu (3.3211)	A7075 (super‑duralumin) A6061 (corrosion‑resistant)	Leg/arm skeletal frames, frameless motor housings—T6 temper gives strength > 500 MPa with excellent machinability for high‑volume production.
High‑Performance Engineering Plastics (self‑lubricating + insulating)	PEEK (polyetheretherketone) PI (polyimide)	PEEK 450G (unfilled) Vespel SP‑1 (PI)	PEEK‑KT820 (modified) PI (standard)	PEEK PI (high‑temperature)	Self‑lubricating bushes for hands, insulating spacers, wear pads—continuous service temperature ≥ 250 °C, low friction coefficient, eliminates need for additional grease, simplifying assembly and maintenance.

3. Core Machining Processes & Comprehensive Quality Assurance System

Our production floor is equipped with Studer internal/external cylindrical grinders, Tsugami / Tornos Swiss‑type sliding‑head lathes, Mazak turn‑mill multitasking centres, and DMG MORI 5‑axis machining centres. Inspection is performed on ZEISS CMMs, Taylor Hobson roughness / contour profilers, and Klingelnberg gear measuring centres. These capabilities underpin our distinct competitive advantages:

Ultra‑Precision Turning & Swiss‑Type Multitasking
For small shafts (dexterous hand parts, screw components), all features—outer diameters, bores, threads, cross‑holes, flats, knurling—are completed in a single clamping. Concentricity is consistently held within 0.003 mm, and surface finishes down to Ra 0.05 μm (mirror‑grade) are achievable. Our proprietary “cold turning” technique minimises thermal effects, especially for difficult‑to‑cut materials.
Deformation Control for Thin‑Walled Parts
For flexsplines, thin sleeves, and similar components, we apply a four‑step process chain: roughing → semi‑finishing → stress‑relief ageing → finishing. Vacuum‑assisted fixtures, pneumatic flexible mandrels, and liquid‑nitrogen cooling keep distortion within single‑digit micrometres. Finite‑element simulation predicts elastic spring‑back, allowing tool‑path compensation.
Full Process Data Traceability
Statistical Process Control (SPC) is applied at every operation; critical dimensions are 100% inspected in‑process. Each shipment includes a complete First Article Inspection Report (FAIR) covering dimensional tolerances, geometric form/location tolerances, surface roughness, hardness, chemical composition, and microstructural analysis. Remote witness of inspection procedures is available.
Agile Prototyping & Rapid Iteration
Understanding the fast‑paced design‑validate‑modify cycle of robotics R&D, we have established a dedicated quick‑response prototyping line supporting 1‑piece minimum order quantity and sample delivery in as little as 3 working days. Moreover, we offer Design for Manufacturability (DFM) co‑optimisation—our process engineers respond within 48 hours of drawing receipt with detailed feasibility analyses, risk alerts, and cost‑reduction alternatives (material substitutions, structural simplifications, tolerance relaxation suggestions) to help you eliminate manufacturing bottlenecks early in the design phase.

4. Partner Enablement: Full‑Cycle Support from Prototype to Volume Production

We are more than a parts supplier—we are a collaborative supply‑chain partner for robot OEMs. Our service model adapts to your maturity stage:

R&D Phase: Small‑batch, multi‑variety rapid prototyping; simultaneous material selection advice, process improvement proposals, and functional / reliability validation support.
Pilot Phase: Dedicated fixtures and machining program libraries; cycle‑time optimisation; pilot production data (50–500 pieces) to fine‑tune assembly processes.
Volume Production: Automated production lines, in‑line inspection, and MES traceability guarantee part‑to‑part consistency, with CPK ≥ 1.67 as standard. We support JIT delivery and global logistics.
