Deep Collaboration, Precise Empowerment: Case Study of Custom Liquid Cooling Plate for a Fortune 500 Enterprise

As high-power electronic devices evolve toward miniaturization and higher performance, thermal management systems have become the cornerstone of ensuring stable operation. Leveraging our expertise in custom liquid cooling plate design, simulation, and precision machining, we successfully delivered a tailor-made solution for a Fortune 500 enterprise. By addressing technical challenges through joint innovation and delivering exceptional manufacturing quality, we earned the client’s full recognition.

I. Core Application Scenarios of Liquid Cooling Plates

Core components of electronic equipment—such as medical imaging devices, industrial control hosts, and high-end testing instruments—generate substantial heat under heavy load. Inadequate heat dissipation leads to performance degradation, shortened service life, or even sudden failures. As a high-efficiency thermal management solution, liquid cooling plates transfer and dissipate heat rapidly through circulating coolant in internal channels. They achieve precise temperature control within limited spaces, making them indispensable for high-power electronic devices. The performance of liquid cooling plates directly determines the stability and reliability of end products.

II. Design & Simulation: Prerequisites for Heat Dissipation Efficiency

1. Customized Design Core

Liquid cooling plate design must fully align with the client’s equipment specifications: installation space, power requirements, and thermal management targets. For this Fortune 500 client, we focused on optimizing flow channel layout—adopting a zoned diversion design that ensures sufficient contact between coolant and heat-generating components while reducing flow resistance. We also balanced lightweight requirements with structural strength to achieve seamless integration with the client’s equipment.

2. The Necessity of Simulation Analysis

Reliance solely on empirical design often leads to issues like flow channel blockages or uneven heat dissipation, resulting in exorbitant rework costs. To avoid this, we conducted joint simulation with the client, covering two key dimensions:

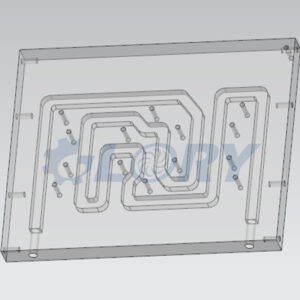

  • Fluid flow simulation: By simulating coolant movement (as shown in the image: Fluid Flow Channel Simulation), we optimized channel width and bend design to ensure uniform flow velocity and eliminate dead zones.
  • Thermal simulation: Using thermal cloud maps (as shown in the image: Thermal Simulation Cloud Map), we accurately predicted heat dissipation performance and pre-empted localized overheating risks.
This simulation phase enabled design iterations before mass production, significantly reducing trial-and-error costs and laying a solid foundation for product qualification.

III. Manufacturing Challenges: Balancing Precision and Quality

Liquid cooling plate manufacturing involves complex processes, with core challenges focusing on the following aspects:
  1. Flow Channel Precision Control: Narrow internal channels with multiple bends require dimensional tolerances within ±0.05mm, demanding extreme positioning accuracy and tool stability from machining equipment.
  2. Sealing Assurance: Encapsulated channels must withstand specific pressure; even minor defects in welding or bonding can cause coolant leakage, posing direct risks to equipment safety.
  3. Material Performance Balance: High thermal conductivity aluminum alloy was selected as the base material, requiring a balance between machinability and corrosion resistance. Surface treatment processes must meet the environmental demands of long-term stable equipment operation.
  4. Batch Consistency: The client’s order required mass production, necessitating both individual product precision and consistent performance across multiple batches.

IV. Deep Collaboration: Reducing Total Cost from the Design Phase

Unlike the traditional “build-to-print” model, we proactively stepped in at the initial design phase, bringing manufacturing-centric insights to the table:
  • Design optimization suggestions: Simplified complex structures into machining-friendly forms without compromising heat dissipation performance, reducing processing steps.
  • Material selection guidance: Recommended cost-effective aluminum alloy grades to replace the client’s initially specified special alloy, lowering raw material costs.
  • Process scheme refinement: Developed optimal machining workflows using our high-precision equipment (CNC machining centers, precision welding machines), shortening lead times.
By integrating the client’s technical requirements with manufacturing feasibility through joint design and simulation, we ultimately achieved the triple goals of “precision compliance, reliable quality, and optimal cost.”

V. Product Delivery and Client Recognition

After multiple rounds of design optimization, simulation validation, and process debugging, we successfully delivered the liquid cooling plates that met all the client’s criteria:
The products passed rigorous tests—including seal integrity, heat dissipation performance, and durability—with all indicators meeting the Fortune 500 client’s stringent standards. The client not only praised the product quality but also recognized our “proactive collaboration, full-cycle support” service model, laying a solid foundation for long-term cooperation.

VI. More Liquid Cooling Plate Solutions

Beyond this custom project, we offer diverse liquid cooling plate solutions tailored to different industries and equipment needs. Some of our representative products are showcased below:
  • Aluminum Alloy Liquid Cooling Plate 1:
  • Aluminum Alloy Liquid Cooling Plate 2:
  • Universal Electronic Equipment Cooling Plate:

VII. Professional Services for Worry-Free Cooperation

We specialize in end-to-end liquid cooling plate services, with core advantages that set us apart:
  1. Full-Cycle Support: One-stop services covering design, simulation, and machining. Our experienced engineers respond quickly to custom requirements.
  2. Cost Advantage: In-house high-precision equipment enables competitive processing fees. For clients with existing drawings, we deliver cost-effective mass production.
  3. Quality Assurance: Every liquid cooling plate undergoes strict inspection to ensure 100% qualification. We also provide secure packaging and logistics to guarantee intact delivery.
  4. Flexible Adaptability: Solutions tailored to industries including medical, industrial, and electronics—balancing precision, quality, and cost optimally.
Whether you need a custom liquid cooling plate solution or OEM services based on existing drawings, we are ready to support your needs with professional capabilities.
