PEEK (Polyether Ether Ketone) is a high-performance thermoplastic polymer widely adopted in high-end foreign trade fields including medical equipment, semiconductor devices, aerospace auxiliary parts, precision automation and high-temperature industrial equipment. Compared with ordinary ABS, POM and nylon plastics, PEEK features ultra-high temperature resistance, excellent mechanical strength, outstanding wear resistance, stable chemical inertness, low water absorption and superior fatigue resistance. It can maintain stable structural performance under high-temperature, high-vacuum, corrosive and high-frequency operating environments, and is extensively exported to Europe, North America, Australia and other high-standard markets. As a high-hardness, high-toughness and heat-resistant special engineering plastic, PEEK presents unique machining difficulties such as high cutting resistance, concentrated cutting heat, easy tool wear and internal stress deformation, requiring professional parameter optimization and standardized precision control for high-end batch export.
Although PEEK material has superior comprehensive physical properties, its high rigidity and poor thermal conductivity bring great challenges to precision machining. Improper tool selection, unreasonable cutting parameters or unstandardized clamping methods will easily cause surface tool marks, residual internal stress, dimensional instability and micro-deformation after long-term use. With rich experience in processing high-end special engineering plastics for foreign trade, we have formed mature and standardized PEEK precision machining systems, effectively solving high-precision processing pain points and providing high-stability, high-cleanliness and high-reliability custom PEEK parts for global high-end industrial clients.
1. Unique Machining Characteristics of PEEK High-Performance Plastic
PEEK’s mechanical and thermal properties are completely different from conventional plastics and general metals, forming exclusive processing characteristics that determine the whole machining logic:
• High rigidity and high cutting resistance: PEEK has hardness close to metal materials, resulting in large cutting resistance and faster tool wear during long-term batch processing.
• Poor thermal conductivity and concentrated cutting heat: Accumulated cutting heat cannot be dissipated quickly, easily causing local material softening, surface ripples and dimensional deviation.
• Tough texture and easy residual stress: High toughness leads to difficult chip breaking; improper processing will retain internal stress, causing later warping and size drift.
• Ultra-stable environmental adaptability: Extremely low water absorption and excellent corrosion resistance ensure no deformation or deterioration in high-temperature, humid and chemical environments, putting forward higher requirements for batch precision consistency.
2. Full-Process Precision Machining Technology for PEEK

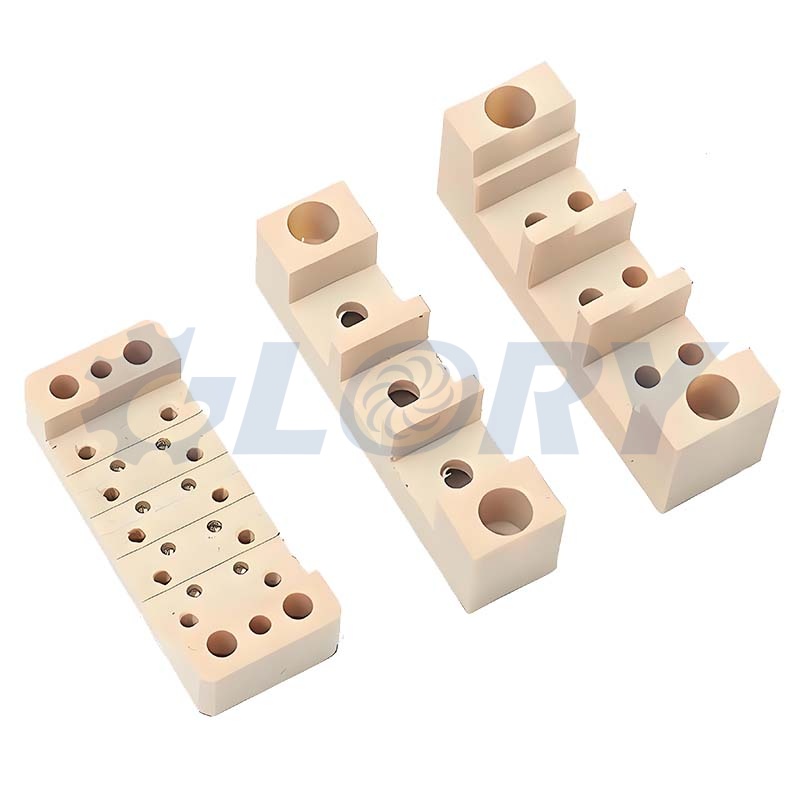

We provide one-stop customized deep processing for PEEK plates, round bars and profiles, covering precision CNC turning, high-rigidity milling, fine drilling, reaming, precision tapping, groove cutting, contour finishing, high-standard deburring and stress relief treatment. We custom-produce PEEK high-temperature insulating parts, semiconductor fixture spacers, medical precision structural parts, wear-resistant transmission sliders, corrosion-resistant equipment brackets and high-end non-standard plastic parts in strict accordance with ISO, DIN and ANSI international precision standards. All products meet the strict cleanliness, dimensional stability and mechanical performance requirements of overseas medical, aerospace and semiconductor high-end equipment.
2.1 Precision CNC Turning for PEEK Rotary Parts
For PEEK precision shaft sleeves, positioning pins, rotary spacers, sealing ring bases and high-temperature-resistant rotary parts, we adopt high-rigidity low-speed uniform turning process with ultra-sharp high-hardness special plastic tools. Aiming at PEEK’s high cutting resistance and heat concentration characteristics, we optimize small-depth layered cutting and sufficient air/oil cooling to avoid heat accumulation and surface ripples. We strictly control roundness, coaxiality and end-face verticality, with conventional tolerance stably controlled within ±0.02mm and ultra-precision matching parts within ±0.01mm. For thin-wall PEEK parts prone to stress deformation, we adopt multi-pass finishing and loose uniform clamping to eliminate extrusion stress and ensure smooth, mark-free and high-gloss surface quality.
2.2 High-Precision Milling for Complex PEEK Structural Parts
We apply high-rigidity machining center milling for PEEK semiconductor fixture plates, multi-hole positioning templates, special-shaped high-temperature brackets and thin-wall precision structural parts. Different from ordinary plastics, PEEK requires rigid equipment support and low-stress cutting strategy. We adopt symmetrical layered milling and segmented stress-releasing processing to disperse cutting force, effectively avoiding tool vibration lines, edge tearing and structural micro-deformation. For high-precision thin-plate and multi-hole array parts, vacuum adsorption flexible clamping is adopted to ensure uniform stress on the plate surface, stable flatness and consistent hole position accuracy, fully meeting the high-precision tooling standards of overseas high-end automated production lines.
2.3 Drilling and Precision Tapping for PEEK High-Precision Holes
PEEK’s high toughness and rigidity make hole processing and thread forming extremely difficult. Conventional processing easily causes hole wall roughness, aperture deviation, thread tooth deformation and tap wear. For precision positioning holes, assembly through holes and deep counterbore holes, we adopt graded pilot hole pre-drilling + low-speed finishing reaming process to ensure smooth hole wall and accurate aperture tolerance. For M2–M18 fine threads, we use high-strength special plastic taps with low-torque constant-feed parameters to ensure complete and uniform thread teeth. All hole positions and threads pass 100% go/no-go gauge inspection to guarantee precise assembly and long-term stable locking for overseas high-end equipment.
2.4 Stress Relief and High-Standard Post-Processing
Stress control is the core of PEEK high-precision processing. All finished PEEK parts undergo professional fine deburring and edge rounding to remove tiny burrs and sharp edges without damaging surface finish and precision dimensions. For high-precision parts used in medical and semiconductor fields, we implement secondary aging stress relief treatment to completely eliminate residual cutting stress, effectively preventing long-term warping, shrinkage and dimensional drift. The finished products feature stable size, high surface cleanliness and excellent high-temperature resistance, adapting to long-distance sea transportation and strict high-end industrial application environments overseas.
3. High-End Overseas PEEK Machining Practical Cases
Case 1: Custom PEEK Semiconductor Fixture Parts for European High-Precision Automation Industry
A German semiconductor equipment manufacturer customized batches of PEEK insulating fixture plates and positioning spacer parts, used for wafer transmission and precision clamping of chip production equipment. The core requirements include ultra-high dimensional stability, zero dust residue, excellent insulation performance, high-temperature resistance and no deformation during long-term high-frequency clamping. Ordinary plastic fixtures cannot meet the high-cleanliness and high-temperature operating standards of semiconductor workshops.
We adopted exclusive low-stress layered cutting process for PEEK high-performance materials, equipped with brand-new sharp tools to ensure ultra-smooth surface without tool marks and dust residue. Vacuum non-contact clamping effectively eliminated clamping deformation; post-processing aging stress relief ensured long-term dimensional stability. All parts passed strict dimensional testing and cleanliness inspection. The delivered PEEK fixtures operate stably in high-temperature and high-cleanliness workshop environments, with zero deformation and zero assembly error. The client has established long-term exclusive cooperative relations.
Case 2: Batch PEEK Medical-Grade Structural Parts for North American Medical Equipment
A Canadian medical equipment trader purchased large quantities of PEEK precision connecting brackets and wearable equipment structural parts, applied in portable medical diagnosis equipment. The parts require light weight, high strength, biological inertness, corrosion resistance, smooth and burr-free surface, and stable size after repeated disinfection and high-temperature cleaning. Traditional nylon and ABS materials are unable to meet medical-grade high-temperature resistance and hygiene standards.
We formulated a medical-grade dedicated processing scheme: low-temperature low-damage cutting was adopted to avoid material structural changes; ultra-fine finishing and dust-free manual deburring ensured no residual impurities on the surface. All products were strictly screened for appearance and dimension, with stable tolerance and smooth edges. The finished PEEK parts maintain stable mechanical performance and no deformation after repeated high-temperature disinfection, fully meeting North American medical equipment safety and durability standards, and have become the client’s long-term stable supporting parts.
4. Our High-End Export Machining Advantages for PEEK Parts
We specialize in high-precision customized machining of PEEK high-performance engineering plastic, supporting drawing and sample customization, small-batch trial production and high-standard mass production. We have mature process experience in solving PEEK’s core processing difficulties such as high tool wear, heat accumulation and residual stress deformation. All products comply with international medical, semiconductor and industrial high-precision standards. We can provide complete dimensional inspection reports, surface cleanliness test documents and quality certification files to support overseas high-end customer audit and customs clearance. Adopting dust-free, shockproof and compression-proof high-standard export packaging, we ensure zero pollution and zero deformation during transnational transportation. Relying on ultra-stable batch precision and high-cleanliness processing capability, we provide global high-end clients with one-stop reliable precision machining solutions for PEEK special engineering plastic parts.
We provide custom machined parts, 5-axis linkage CNC machining, and the design, production, and assembly of machinery and equipment.
