Customized 5 axis CNC machining turbine guide vane by China factory

Custom 5 axis CNC-machined turbine guide vane by China factory

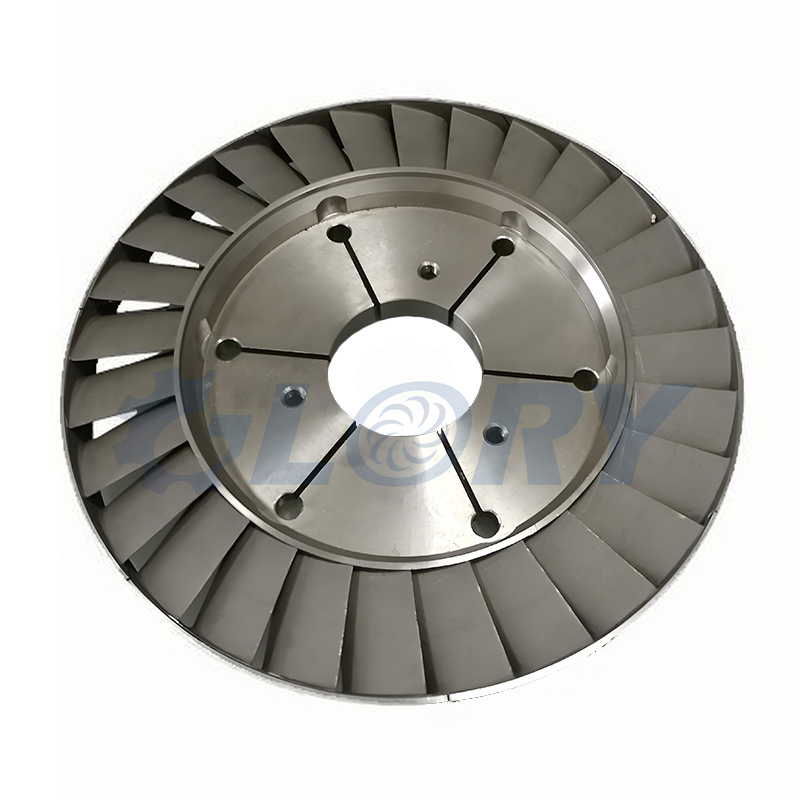

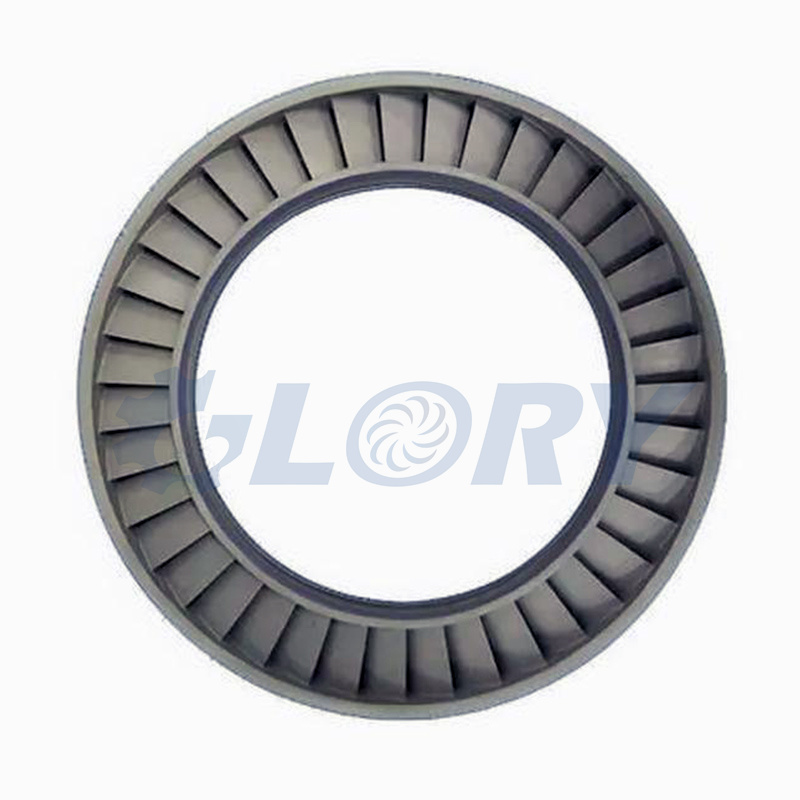

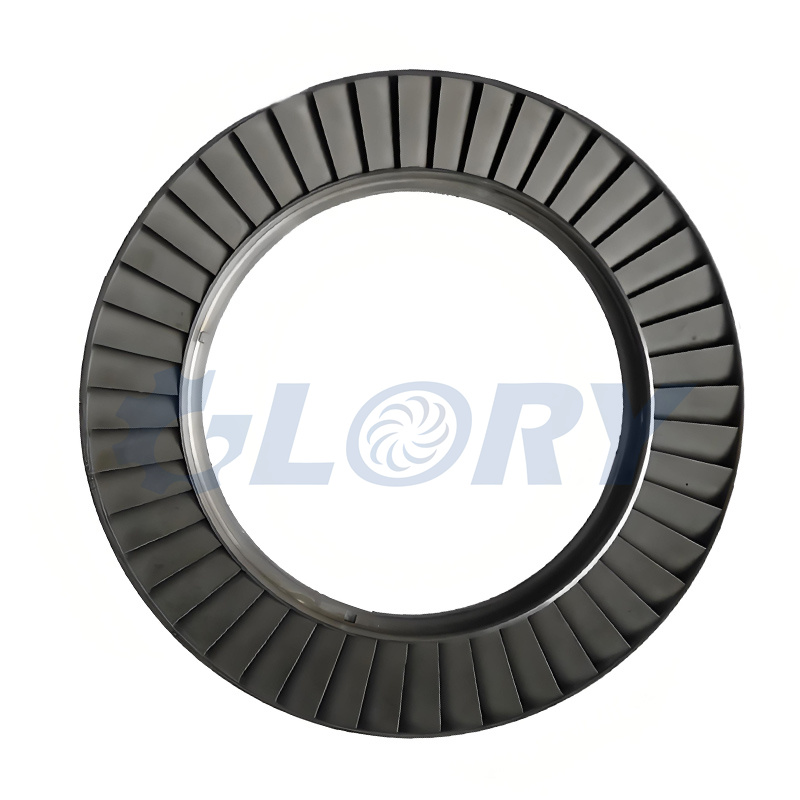

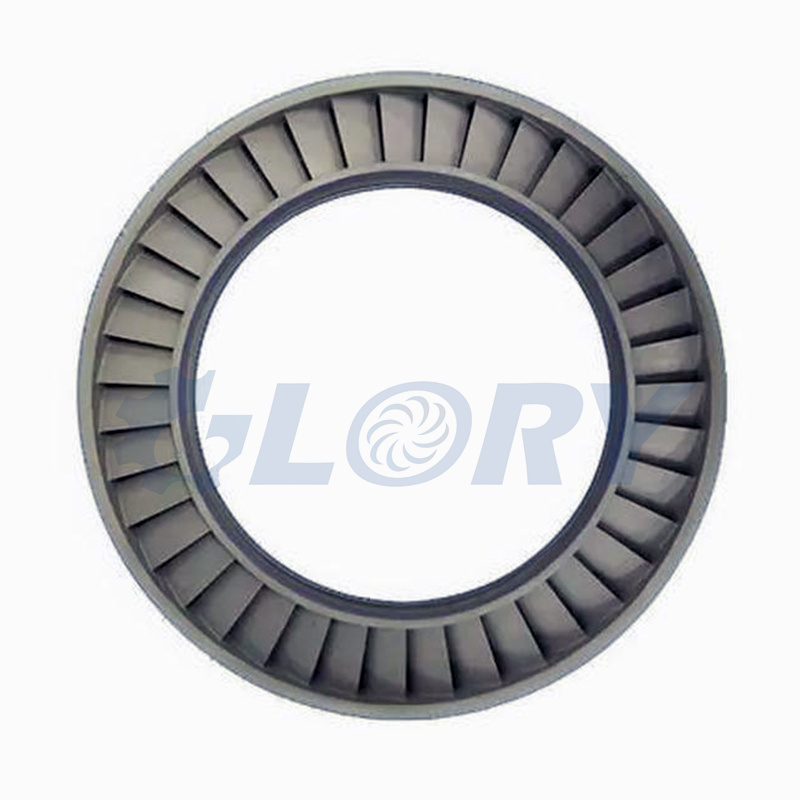

Five axis CNC machining parts guide vane for turbine machine.

The application of five-axis machining in the production of guide vanes is crucial, especially for guide vanes commonly used in turbochargers, aircraft engines, and other turbine machinery. The primary function of guide vanes is to control the direction and speed of airflow, which requires high precision, surface quality, and accuracy. The advantages of five-axis machining lie in its ability to effectively handle the complex geometries and precision requirements of guide vanes. Below are specific applications of five-axis machining in guide vane production:

1. High-precision machining of complex surfaces

Guide vanes often have complex geometries, such as 3D curved surfaces, twisted blade shapes, and asymmetric designs. Five-axis machining can:

  • Machine complex surfaces at various angles in a single setup, avoiding the positioning errors caused by multiple clamping.
  • Ensure the curvature, shape, and surface quality of the vanes meet design specifications.

2. Reduction of fixture complexity

Traditional three-axis or four-axis machining may require multiple setups and adjustments of angles, but five-axis machining allows for synchronized control of both the tool and the workpiece, significantly reducing the need for fixtures and lowering complexity and costs.

  • Five-axis machines can complete complex angle and surface machining by moving the X, Y, Z axes and rotating the two axes (A, B, or C axis) simultaneously without repositioning.

3. Improved machining efficiency

Due to the high precision and complexity of guide vanes, traditional methods are time-consuming. Five-axis machining significantly increases efficiency, especially for small-batch, high-precision guide vane production. Its flexibility and automation boost production speed.

  • By optimizing tool paths and reducing non-cutting time, particularly in blade machining, five-axis machines can smoothly follow the complex contours of guide vanes.

4. Adaptation to hard-to-machine materials

Guide vanes are often made from high-temperature, high-strength materials such as superalloys and titanium alloys. Five-axis machines, through better tool angle control and optimized cutting conditions, reduce tool wear and ensure high-quality surface and dimensional accuracy when machining difficult materials.

5. Enhanced surface quality

Guide vanes require a high level of surface finish, particularly in fluid dynamics applications where surface roughness directly affects airflow stability. Five-axis machining can:

  • Minimize tool marks on surfaces by continuous machining paths, resulting in higher surface finish.
  • Provide more precise control of tool paths to avoid machining marks and roughness issues that occur with traditional multiple-pass machining.

6. Integral blade and disk machining

For some specific designs, guide vanes may be integrally formed with the disk (as in the case of blisk designs in turbine engines). Five-axis machining allows for the complete machining of both the vane and disk in a single setup, reducing assembly errors and enhancing overall structural strength and performance.

7. Reduced post-processing steps

Since five-axis machining can complete the machining of complex geometries in a single operation, it often reduces or eliminates the need for subsequent assembly, alignment, or additional surface processing steps. This increases the production efficiency and consistency of guide vanes.

Five-axis machining provides great flexibility and precision control in the production of guide vanes. Whether it’s the complex vane shapes, stringent surface quality requirements, or the machining of difficult materials, five-axis machines can efficiently and accurately complete the tasks in a single setup while maintaining stability and consistency throughout the machining process.
