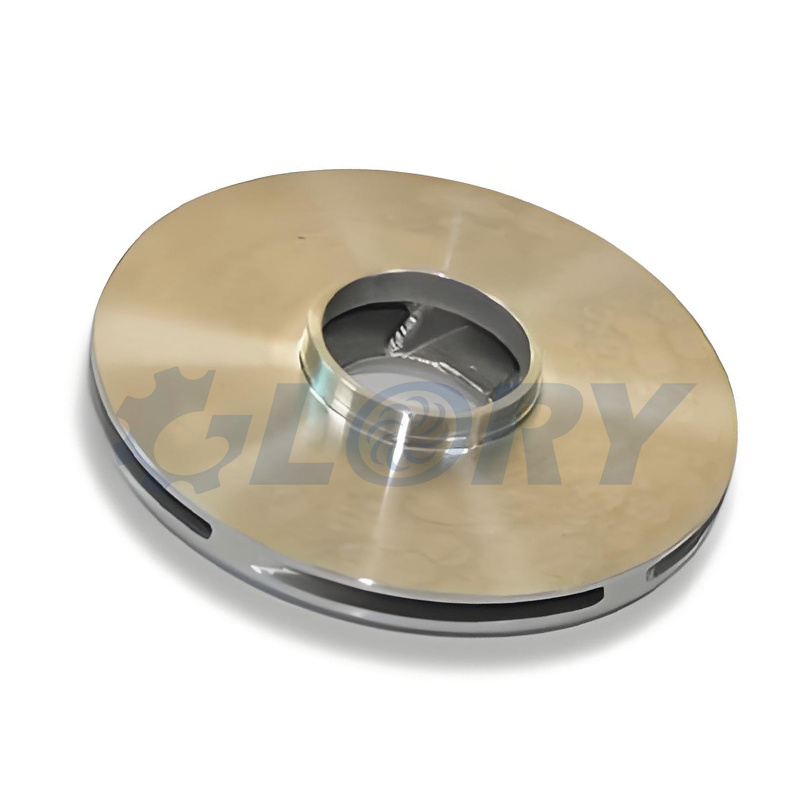

CNC machining 316 stainless steel investment casting impeller by China factory

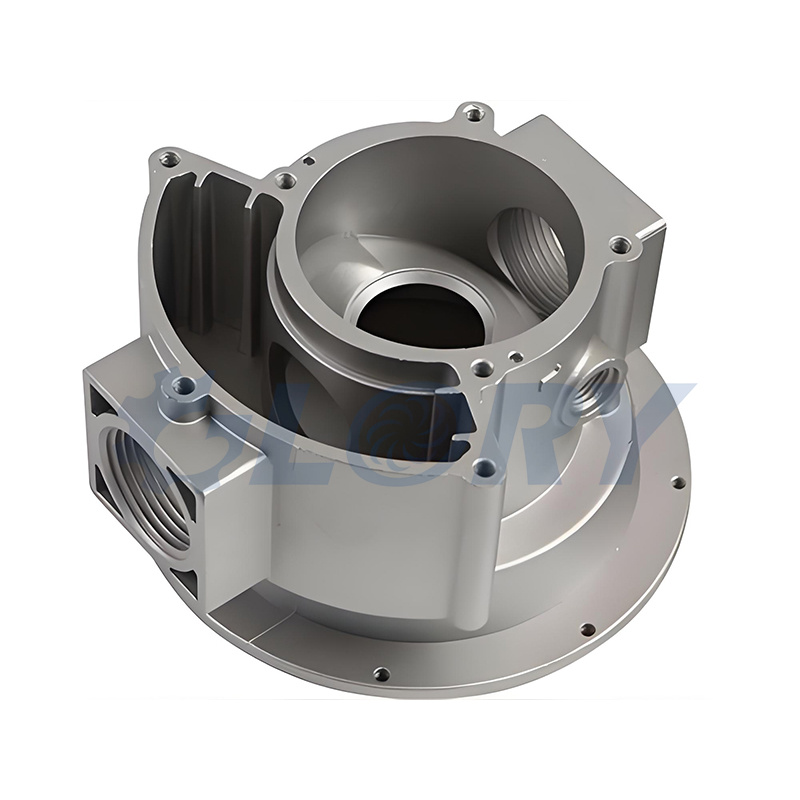

Custom CNC machining 316 304 17-4PH stainless steel investment castings

CNC machining of precision cast stainless steel parts combines the processes of precision casting and CNC machining, allowing for the production of high-strength, corrosion-resistant parts with complex shapes and precise dimensions. Below are the characteristics and application scenarios of such parts:

1. Advantages of Precision Cast Stainless Steel:

  • Complex Shapes: Precision casting (also known as investment casting or lost wax casting) can produce highly complex geometries with minimal need for post-processing, making it ideal for manufacturing intricate parts.
  • Material Properties: Precision casting allows the use of various stainless steel materials, offering high strength, corrosion resistance, and heat resistance, making it suitable for parts used in harsh environments.
  • Reduced Material Waste: Precision casting produces near-net-shape parts, minimizing material waste. This is particularly cost-effective when working with expensive stainless steel materials.

2. Advantages of CNC Machining:

  • High Precision: While precision casting can create parts close to the final shape, for certain critical dimensions, holes, threads, or precise fittings, CNC machining enhances the part’s accuracy and surface quality.
  • Flexibility: CNC machining is suitable for small-batch or customized production, addressing the specific needs of different parts, especially when fine-tuning or local machining is required after casting.

3. Applications of CNC Machined Precision Cast Stainless Steel Parts:

  • Valve and Pump Components: Valves, pump bodies, impellers, and other components that require complex internal channels and precise fittings are often cast to near-final shape, followed by CNC machining to ensure the accuracy of critical dimensions.
  • Medical Equipment: Stainless steel medical instruments require corrosion resistance and high precision. Examples include surgical tools and implants, where precision casting and CNC machining can meet these stringent demands.
  • Aerospace and Automotive: Aircraft and automotive components (e.g., engine parts, turbine blades) require high-strength, heat-resistant, and corrosion-resistant stainless steel, with strict demands on size and shape. These parts are typically manufactured using a combination of precision casting and CNC machining.

4. Typical Process Flow:

  1. Precision Casting: First, the stainless steel blank is produced using precision casting, resulting in a shape close to the final part.
  2. Heat Treatment (Optional): Depending on the material and application requirements, heat treatment may be applied to improve mechanical properties, such as aging or quenching.
  3. CNC Machining: The blank is then precisely machined, especially for areas involving complex cavities, precise holes, threads, and surface finishes, which are usually achieved through CNC machining.
  4. Surface Treatment: For parts requiring further enhancement of surface quality or corrosion resistance, surface treatments such as polishing or plating may be applied.

5. Material Selection:

Common stainless steel materials used for precision casting and CNC machining include 304, 316, and 17-4PH. 304 stainless steel offers good corrosion resistance and machinability, while 316 stainless steel excels in chemical resistance and high-temperature performance. 17-4PH stainless steel provides high strength and hardness, suitable for high-strength applications.

By combining precision casting and CNC machining, complex stainless steel parts can be produced to meet high-performance requirements, making them ideal for use in fields that demand mechanical strength, corrosion resistance, and precision.

Material: Stainless steel 304 316 17-4PH, Steel.
Process: Raw material cutting, CNC turning.
Surface treatment: As machined surface
Tolerance: +/-0.05mm
MOQ: 1 pieces.
Testing equipment Vernier caliper, projector.
Packaging: Seaworthy packing with protection for productions or customers’ requirement
Delivery: 15 days.

Workshop:

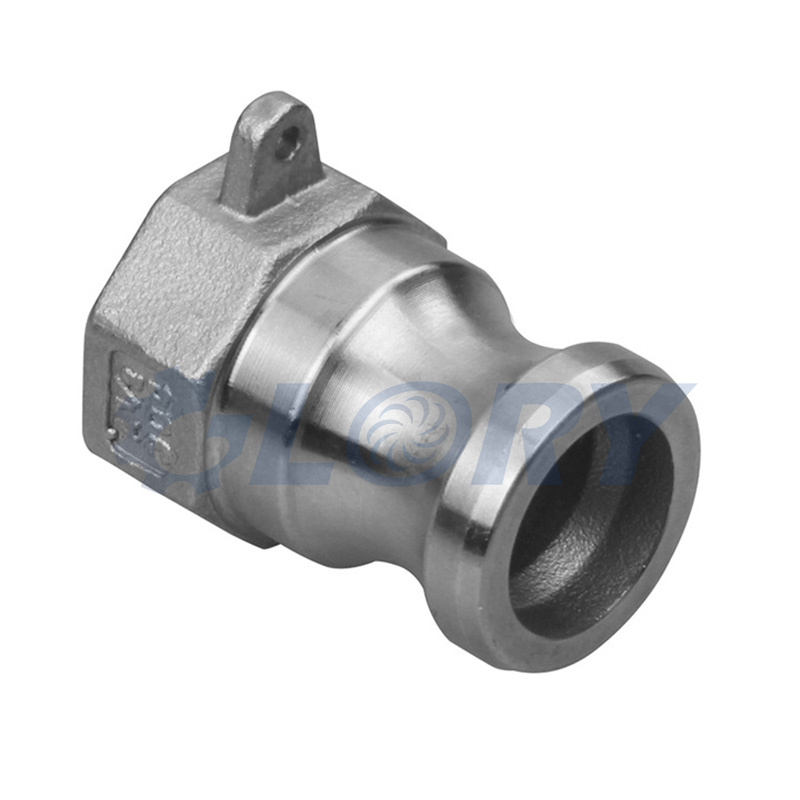

Custom CNC machining castings production:
